F010/FH010 Magnet Assembly
F010/FH010 Magnet Assembly
Encapsulated e-iron for use in the F010 and FH010 linear drive units. Comes complete with 2 metres of 6mm 3 core grey cable and separate earth wire. Armoured cable variants are available upon request.

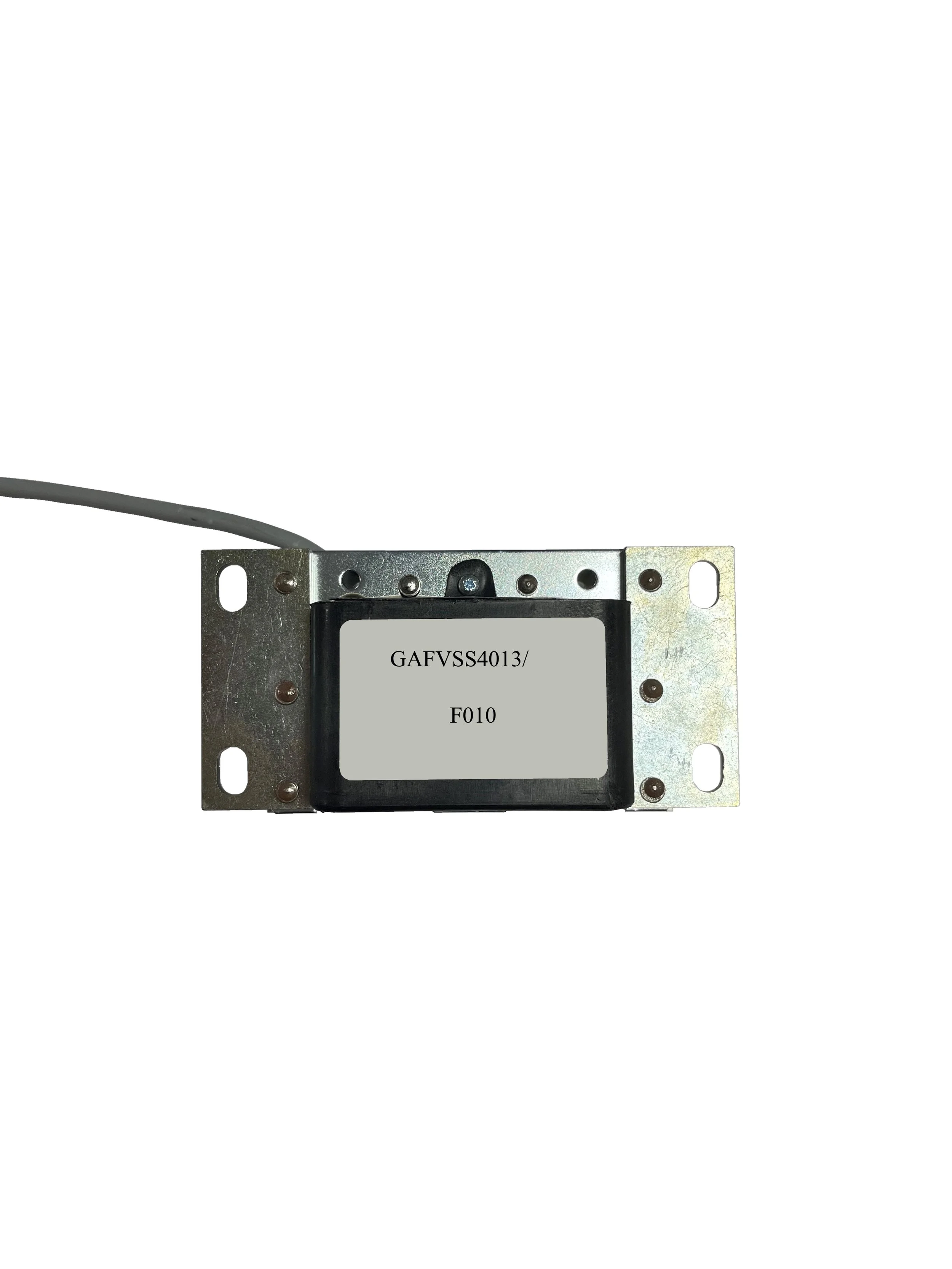

Pictured is the GAFVSS4013/1.
Riley part no:
GAFVSS40131 = F010 230v mag assy
GAFVSS40132 = F010 110v mag assy
GAFVJB4002R1 = FH010 230v mag assy
GAFVJB4002R2 = FH010 110v mag assy
GAFVJB4002R3 = FH010 230v mag assy w/ armoured cable
Weight = 2.3 / 2.75kg respectively
